TECHNOTRADE offers a simple way to maintain calibration chart accuracy
Ad
If your fuel inventory data is based on outdated or static calibration tables, how confident are you that every liter accounted for truly reflects what’s in the storage tank?
Over time, fuel storage tank geometry can shift due to temperature changes, pressure, or wear. Underground tanks can corrode and deform due to poor installation, harsh soil conditions, and ethanol-blended fuels that absorb moisture and speed up corrosion.
Tank tilt caused by ground settling can distort fuel level readings and make the original calibration table inaccurate. Foreign objects inside the tank - like dropped tools, debris, or equipment - can also interfere with measurements and lead to volume errors.
As a result, the original factory calibration chart no longer matches the tank's current state. This discrepancy affects accurate fuel tracking at petrol stations, making periodic recalibration necessary to create an updated chart reflecting the tank's actual condition.
Intelligent Calibration, Made Simple by TECHNOTRADE
To maintain accurate calibration charts TECHNOTRADE has integrated the automatic tank calibration procedure into the PTS-2 Smart forecourt controller.
Unlike the traditional approach, automatic calibration does not require prolonged station downtime or costly procedures. Conventional tank calibration involves ventilating and cleaning the tanks, performing the calibration itself, disposing of chemical agents used during cleaning, and results in the fuel station being out of service for several days.
Automatic calibration ensures precise volume measurement in fuel storage tanks without interrupting operations. Continuous calibration adjusts for detected changes in real time, improving inventory accuracy, reducing errors, and supporting reliable fuel reconciliation. It’s a key feature for maintaining operational transparency and preventing losses.
How the PTS-2 Automatic Tank Calibration System Works
Installation and configuration of the PTS-2 Smart forecourt controller typically take about 3 hours, and no additional system integration is required.
Once active, the controller continuously communicates with fuel dispensers and automatic tank gauges inside the tanks. As the tank shape changes due to operational factors like temperature or pressure, the system automatically recalculates interval capacities and updates the calibration chart in real time.
These dynamic calibration charts ensure precise fuel volume measurement, accurate delivery registration, and temperature-compensated volume adjustments.
The system supports over 200 brands of dispensers and ATG probes, making it highly adaptable to any existing forecourt setups.
How Accurate Are Automatically Calibrated Tank Charts?
The accuracy of automatically calibrated tank charts depends on the precision of both the fuel dispensers and the ATG probes. Most dispensers measure fuel with an error margin of ±0.25% to ±0.5%, while level measurement systems determine the liquid level with an accuracy of ±1 mm.
The PTS-2 controller uses data from both sources to continuously update the calibration chart, ensuring reliable volume measurements and effective fuel management.
To ensure proper operation of the PTS-2 controller’s auto-calibration function, the tank must undergo at least 3 - 4 complete fill-and-empty cycles during regular use. When this condition is met, the final error margin of the automatically generated calibration table does not exceed ±0.5%.
PTS-2 Forecourt Controller – Compact, Powerful, and Versatile
The PTS-2 controller is a compact, credit card-sized device designed for smooth integration into any forecourt hardware. Despite its small footprint, it delivers robust functionality, supporting over 150 dispenser brands and more than 50 types of ATG systems and probes.
It can simultaneously manage up to 120 dispensers and 20 tank probes, with both wired and wireless connectivity options. Equipped with a built-in web server, the PTS-2 enables real-time monitoring, configuration, reporting, and control.
The PTS-2 controller offers extensive functionality for accurate and reliable monitoring of petroleum products in storage tanks. It continuously tracks key fuel parameters in real time and automatically alerts the operator when critical issues are detected.
The system identifies and reports the following anomalies:
– Overfill beyond the permitted level,
– Critically low fuel levels,
– Signs of leakage or theft,
– Errors in level gauge operation.

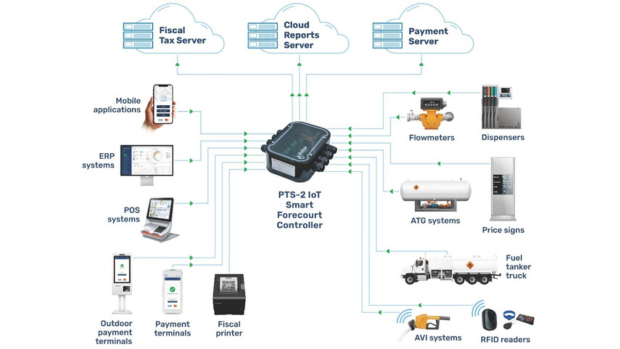

Additionally, the PTS-2 can act as a bridge between existing fuel management systems and forecourt equipment, simplifying the deployment of third-party solutions and bringing additional value without disturbing the current setup
The functionality of the PTS-2 controller addresses virtually all automation tasks at a fuel station.
Smart stations start with a smart PTS-2 forecourt controller! PTS-2 – SIMPLY SMART!
Contact us today and take your forecourt to the next level.
